BRF

IP66-K08 – CLASSE II

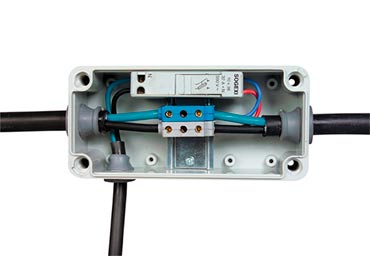

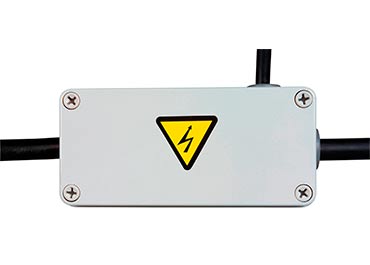

This compact junction base is generally used as wall-mounted network junction boxes.

Class II design and high protection rating: IP66.

Option: BRF sound system with shielded cable (length as per customer specifications) and 3-pin XLR plug.



Advantages

Mini-socket kit_Sogexi_LACROIX City
  • Compact footprint.
  • IIP66 protection rating.

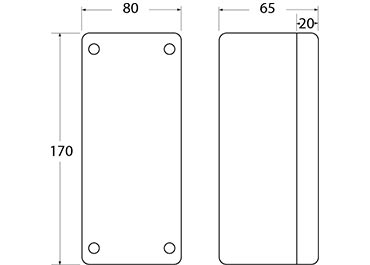

Technical specifications

Max capacity

 BRF: up to 1 pass-through cable Ø14mm (Ø20mm: please contact us), and one output cable Ø10mm (2 cables: please contact us) IP66 (box open: IP2X).
•
Rail length: 70 mm

Fastening

• Mounting via the bottom of the box.

Casing
• Self-extinguishing polycarbonate.
• IP66 (box open: IP2X).
• IK08 in accordance with EN 62262.
• Class 2.
• -40°C to +120°C.

Product standards
• EN 50298.

Installation standards
• NF C17-200.

Standard colours: grey
• Other colours: please consult us.
