Modul 50
With its ear to the ground, LACROIX City Street Lighting develops high-quality, extremely durable junction boxes and components. Thanks to a solid culture of innovation, LACROIX City Street Lighting has been designing for over 35 years, equipment keeping pace with the needs in the field.
Our connecting solutions allow you to protect people and installations and to save time in terms of installation and maintenance.

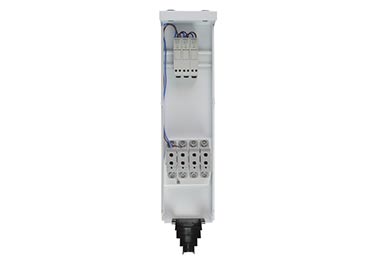

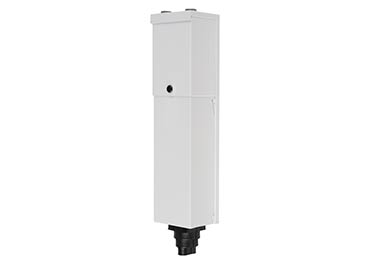

Modul 50
IP44-IK08,CLASSE II, PATENTED

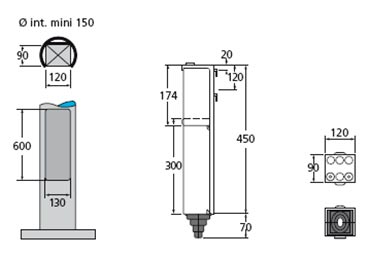

Wiring capacity: 2 cables of 50mm² or 3 cables of 35mm² – Pole diameter: 150mm
Seamless bent aluzinc junction boxes.
Patented process, 6 times more resistant to corrosion than galvanised sheet.
Tempered plastic-coated insulating coating offering high-adhesion UV protection that will not separate if scratched.
LCIE Class 2-approved junction box on interior insulation.
The exterior plastic coating provides additional safety.
Protective cone for the frontal insertion of power cables into Pak Modul.
Dowload documentation
Advantages
- Complementary to plastic boxes and suitable for small and medium production runs as well as specific needs.
- Fixing lug with snaplock front or rear.
- Extractable and adjustable terminal block on Modul 35 et 50.
Technical specifications
Casing
- Anti-UV plastified aluzinc (0.35mm/side).
- Impulse withstand voltage: 4kV.
- -40°C to +115°C.
Product standards
- EN 60598.
Installation standards
- NF C17-200.
Standard colour: white
- Other colours: please consult us.
