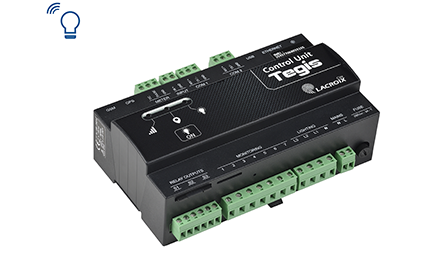

Tegis Astroconnect control unit

Tegis Astroconnect control unit enables connected control for public lighting cabinets through 3 programmable astronomical outputs independently, to optimize ignition hours throughout the year.

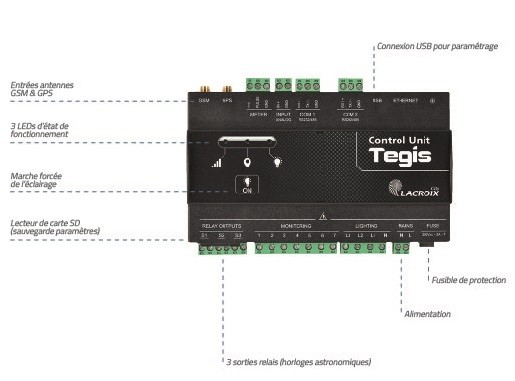

Simple for both installation and maintenance: override button on the front side, cabling and easy integration in cabinet, with removable connectors.



Download documentation

Advantages

Tegis Lighting Plus CENTRAL CONTROL
  • Energy savings thanks to astronomical calculation and override night cutouts.
  • Maintenance costs greatly reduced thanks to astronomical clocks remote setting, from a secured web-based platform.
  • Future-proof to complete connected management of the public lighting cabinet with Tegis Lighting.

Technical specifications

Technical Specifications:

  • Casing: IP2X
  • Materiel: Polycarbonate

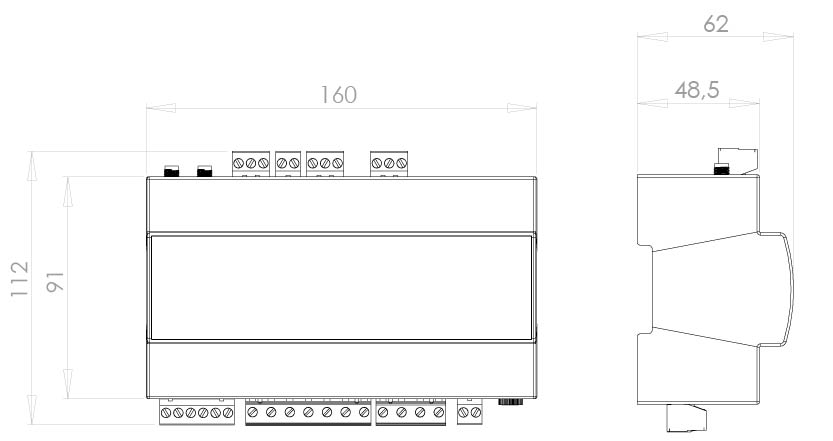

  • Dimensions (HxLxP) – in mm: 112 x 160 x 62, equivalent to 9 modules
  • Removable connectors
  • SD card reader, to store the control unit settings
  • 3 relay outputs (astronomical clocks)

Electrical specifications:

  • Operation voltage: 160V-265VVAC / 50-60 Hz
  • Electric class: Class 2
  • Removable fuse T2A-H-250V



Installation:

  • In cabinet
  • Standard fixation: DIN 35 rail
  • Operation temperatures: from -25°C to +50°C

Communication:

  • Integrated modem: GSM/GPRS
  • Ethernet connection

Norms and Certifications:

  • Product norms:
    – EN 60950-1
    – EN 61000-2 / 61000-3
    – EN 55032
    – EN 55024
    – EN 301-3 / 301-7 / 301-24 / 301-489 / 301-511 / 301-908
    – EN 300-440



Environmental protection

Energy saving certificatest-Sogexi

Eligible for Energy saving Certificates: RES-EC-107
> 17,500 kWh cumac x N (number of astronomical clocks)
Astronomical clock for street lighting.

Compact packaging, made only from cardboard, to facilitate recycling.
