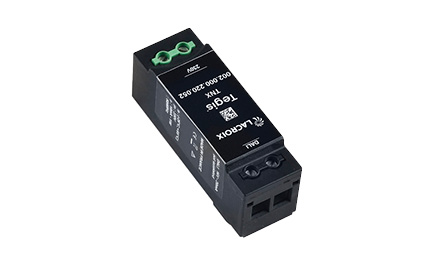

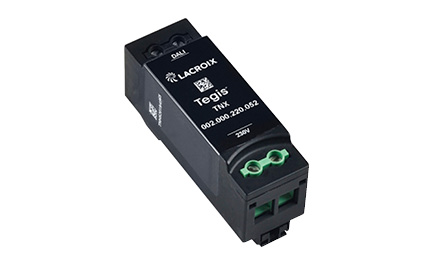

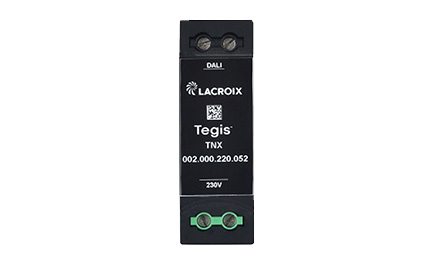

TNX communicating nodes

Based on PLC (Power Line Communication) technology, communicating nodes are installed at the light source, in the junction boxes in lamppost bases.

Suitable for all equipment under DALI protocol, regardless of its power.

Every node is a transmitter, receiver and repeater. Every TNX node is unique and has its own specific address.

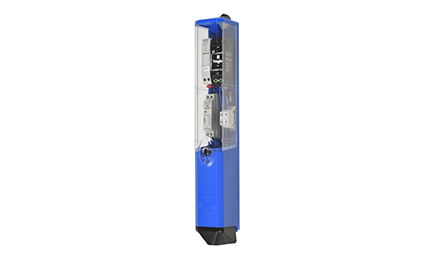

Tegis Lighting Plus CENTRAL CONTROL
  • Modular, it allows to update the connected management of the street light cabinet to the light point, thanks to PLC technology.
  • Extremely compact.

Technical characteristics

  • For DALI equipment.
  • Self-extinguishing polyamide case.
  • Can be installed up to 10m away from the appliance.
  • Max distance between 2 communicating nodes: 150m.
  • Single (mono) or double equipment (duo) management; beyond this, please contact us.
  • Easy to add, wire and install at each light point.
