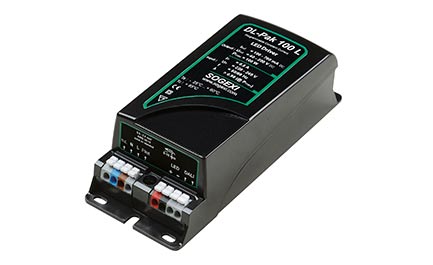

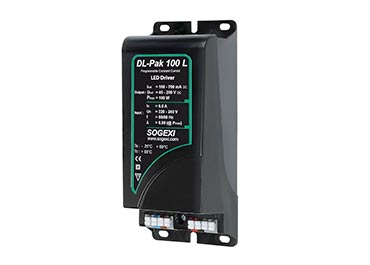

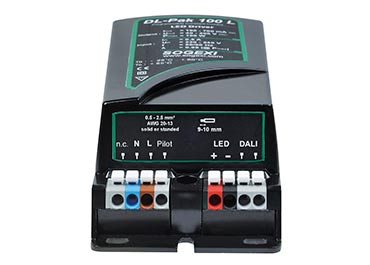

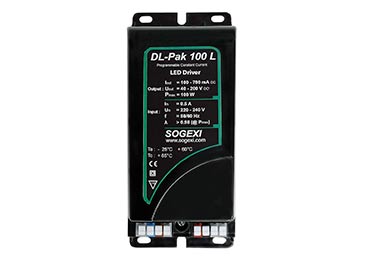

LED Driver DL-Pak 100L

IP2X-IK08 – CLASSE II

LED Driver – Constant Current Supply.
Progammable from 100 mA to 700 mA.
Power: up to 100 W.
Output voltage: up to 200 VDC.
High resistance against network pollution.
High reliability and long life duration.
Very low inrush current – large number of Driver per cable.
High energy efficiency and power factor (also during dimming process).
Driver to install inside luminary.
Direct Pilot Input (for association with Motion sensor).
Additionnal energy saving (up to 65%) by dimming scenarios.

Advantages

EN-LED Driver DL-Pak 70 INSULATED_Sogexi_LACROIX City
  • Excellent reliability and long life.
  • Configurable to respond to your specific needs.
  • Possible distance between driver and source: up to 15m.
  • Numerous integrated dimming options to optimise energy savings.

Technical specifications

DL-Pak 100L range-Sogexi

Energy saving certificates

Energy saving certificatest-Sogexi

Makes it possible to obtain energy saving certificates:
• RES-EC-101 > 2.0 kWh cumac x P(W).
• RES-EC-102 > 1.6 kWh cumac x P(W).
• RES-EC-103 > 8.0 kWh cumac x P(W).
• RES-EC-104 > case 1: 9300 kWh cumac x N lighting fixtures.
> case 2: 7200 kWh cumac x N lighting fixtures.
