Citypak
IP44-IK08 – CLASS 2 – PATENTED COMPONENTS
Wiring capacity: 2 cables of 25mm² or 3 cables of 16mm² – Pole diameter: 84mm

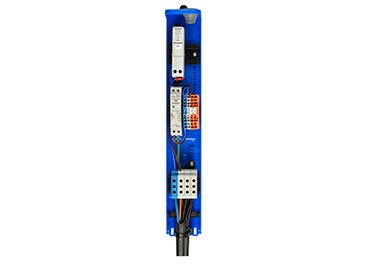

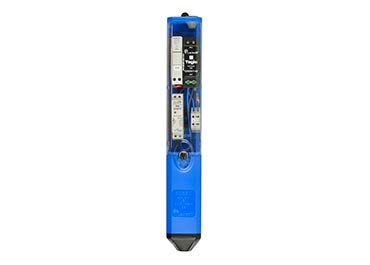

The lamppost junction box entirely dedicated to smart lighting for posts with a min. inside diameter of 84mm.
The Citypak can connect up to 2 x 25mm² network cables or 3 x 16mm² network cables and 2 lighting fixture cable outputs.
Up to 4 simultaneous functions (connecting, protecting, managing and detecting): modularity and scalability at the service of smart lighting.
Open sides and stiffened back to facilitate connection.
Low cover easily fitted for secure maintenance of the connections.
Protective flexible cone, for the frontal insertion of power cables.
Advantages
- Three stages: the highest enclosing capacity on small posts market.

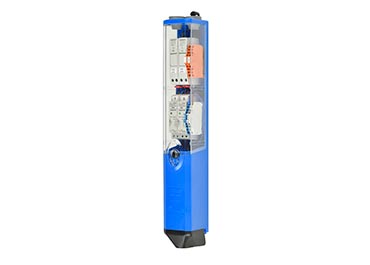

- Long high transparent cover to view and access protections. Central locking by 1/4 turn captive screw.
- Fixing bracket, adjustable without tools over 170mm, with rear hooking.
Technical characteristics
Max capacity
- Up to 2 network cables, 4x25mm².
- Up to 3 network cables, 5G16mm².
- Up to 2 lighting fixture cables, 3G2.5mm².
Casing
- Self-extinguishing polycarbonate.
- IP44 in accordance with IEC 60529 (open junction box: IP2X).
- IK08 in accordance with EN 62262.
- Class 2.
- -40°C to +130°C.
Product standards
- EN 61439-2.
Installation standards
- NF C17-200 and associated guides.
Standard colours: blue
- Available in transparent version.
- Other colours: please consult us.
Mounting
- Fixing bracket 1 hook.
- Possible vertical rail mounting with M6 screws.
Optional
- Terminal block: marking of the terminals to facilitate maintenance.
Delivery
- Pre-wired with high-temperature silicone coated wires and crimped lugs.
- Supplied with fuses, configuration labels and cable clamp.
