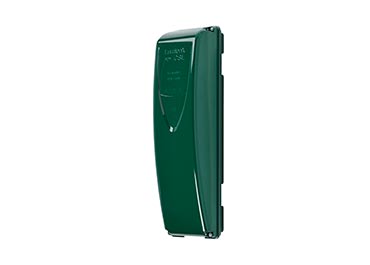

Lumipak CSL


  • This large wall-mounted junction box provides elegant design and large enclosing capacity: ballasts, terminals, protections and other devices.
  • Designed to reduce installation and maintenance time, the CSL box also allows integration of electronic devices such as electronic ballasts and LED drivers.
  • Passage and support of wires under DIN rail to optimise internal space and simplify closure.
  • Additional sealing baffle with surrounding sealing surface.
  • “Guillotine” cable clamp for improved sealing.



Mini-socket kit_Sogexi_LACROIX City
  • Smart design and discreet on wall-mounted.
  • Wall-mounted integration of large devices and equipment.
  • Possibility of integrating an illumination connector.
  • Possibility of mounting additional DIN rails.

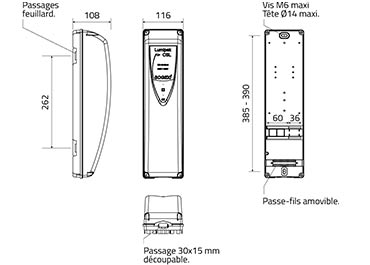

Technical specifications

Max. capacity

  • Up to 3 cables Ø15mm (3G2.5mm²), via the bottom of the box.
  • Possibility of broadening the cover base on site.


  • By strap (20mm).
  • By screws, M6 max


  • Polypropylene, self-extinguishing, UV treated.
  • IP44 in accordance with IEC 60529 (open junction box: IP2X)
  • IK08 in accordance with EN 62262.
  • Class 2 (can also be supplied with insulated earth terminal).
  • -40°C to +130°C.

Product standards

  • EN 61439-2.

Installation standards

  • NF C17-200 and associated guides.

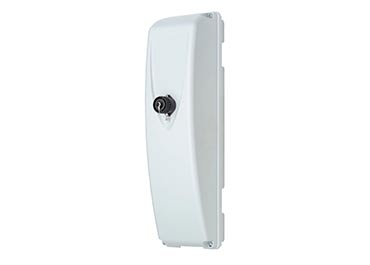

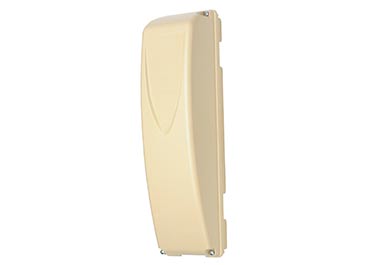

Standard colours: grey and cream

  • RAL paint according to customer’s wishes:
    please consult us.
