Lumipak
Lumipak
IP44-IK08 – CLASSE II
The new universal wall-mounted junction box, designed to accommodate numerous formats of protections, devices and terminals.

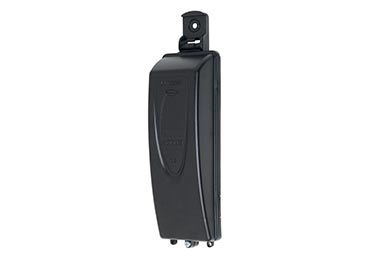

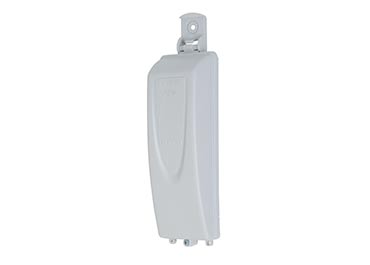

Lumipak LD:
Junction box combines an attractive appearance with integration capacity.

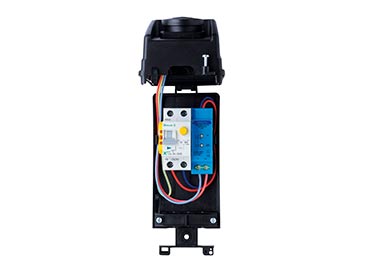

Lumipak LDX:
Without sockets or connectors, allows connection within the box itself.

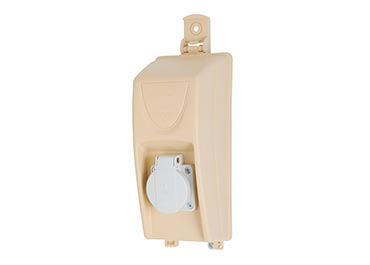

Lumipak LDXP
Includes a socket, available for an entire range of socket types, adapted to every type of application and different European standards.

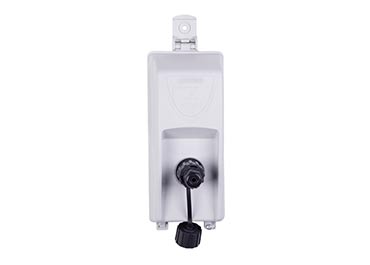

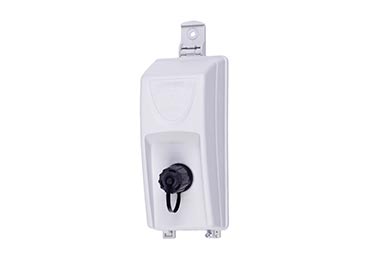

Lumipak LDXC
Includes connectors, available with several standard connectors:
- Hirschmann: power supply or sound system.
- XLR-3 pin: sound system.
- RJ45: CCTV or communication.
Download documentation
Advantages
Design, reduced dimensions of the LD enclosure and integration capabilities of the LDX enclosure.
Hinged lid with:
- maximum opening at 120°, opening locked at 90°
- full cover of the bottom of the case
- additional sealing baffle and enveloping joint face
- closing by screws and additional clipping for the LDX box
- additional earpieces for padlocks and seals.
Even more functional base:
- expanded interior space to facilitate on-site
- wiring ‘guillotine’ cable clamp for better sealing and captive with 2 screws for better maintenance over time
- passage and maintenance of the wires under the DIN rail and retaining tab for easy closing of the cover.
Technical specifications
Dimensions
- LD: H210 x W74 x D60mm.
- LDX: H210 x W95 x D95mm.
Max. capacity
- LD: up to 2 cables Ø14.5mm (3G2.5mm²), through bottom of box.
- LDX: up to 3 cables Ø14.5mm (3G2.5mm²), through the bottom of the box, after guided cutting of the cover and base.
Mounting
- By strap (20mm).
- By screw: EDF standard lag screw, 225mm center distance.
Enclosure
- Polypropylene copolymer, UV-resistant.
- Flexural modulus: 1.4GPa (ASTM D780).
- Heat and fire resistance:
Ball test: 125°C (IEC60695-10-2).
Glow wire: 850°C (CEI60695-2-10). - Resistivity: 1017Ω.cm.
- Dielectric strength: 30kV/mm.
- IP44 to IEC 60529 (open housing: IP2x) – IK08.
- Class II (can also be supplied with insulated earth terminal). Only LDXP is not class II from -50°C to +130°C.
Product standards
- EN 60598-1 & EN 60598-2-3.
- IEC 60439-1.
Installation standards
NF C17-200 and associated guides.
Standard colors
- LD – LDXP : beige, gray, black
LDX – LDXC: gray
Customer RAL paint: please consult us.
