Tegis Astro control unit
The control of lighting cabinets Tegis Astro is the primary source of energy savings thanks to its integrated astronomical clock.
Future-proof to Tegis Astroconnect, Tegis Lighting and Tegis Lighting Plus.

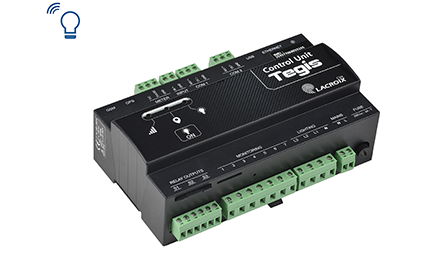

Tegis Astro control unit
Tegis Astro control unit is positionned in the lighting cabinet and enables the local control of lighting and extinguishing through a synchronised astronomical calculation.
The box provides 3 programmable independ astronomical clocks outputs with override night cutouts on each of them. The Tegis Astro control unit reprogramming is done on site, in the cabinet.

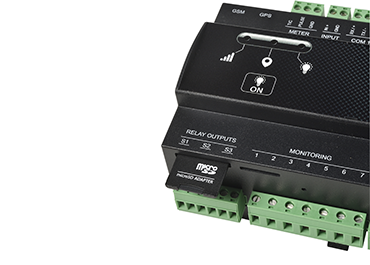

Override button on the front side for maintenance operations.

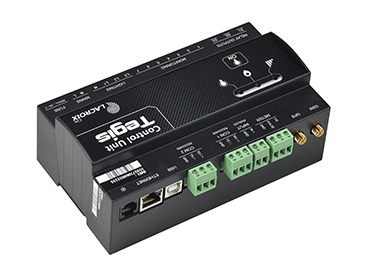

Easy integration thanks to it compact size, simple wiring with removable connectors.
Advantages
First source of energy saving thanks to its local astronomical clock and override night cutouts.
Future-proof to connected control of lighting cabinet with Tegis Astroconnect, or to complete connected management of lighting cabinet with Tegis Lighting.
Technical specifications
Mechanical Specifications:
- IP2X protecting rating.
- Materiel : Polycarbonate
- Dimensions (HxLxP) – in mm : 112 x 160 x 62, equivalent to 9 modules
- Removable connectors
- SD card reader, to store the control unit settings
- 3 relay outputs (astronomical clocks)
Electrical specifications:
- Operation voltage : 160V-265VVAC / 50-60 Hz
- Electric class : Class 2
- Removable fuse T2A-H-250V
Installation:
- In cabinet
- Standard fixation: DIN 35 rail
- Operation temperatures: from -25°C to +50°C
Communication:
- Integrated modem: GSM/GPRS
- USB connection for onsite settings
Norms and Certifications:
- Product norms:
– EN 60950-1
– EN 61000-2 / 61000-3
– EN 55032
– EN 55024
– EN 301-3 / 301-7 / 301-24 / 301-489 / 301-511 / 301-908
– EN 300-440
Environmental protection
Eligible for Energy saving Certificates: RES-EC-107
> 17,500 kWh cumac x N (number of astronomical clocks)
Astronomical clock for street lighting.
Compact packaging, made only from cardboard, to facilitate recycling.
In order to promote the recycling, the packaging is all in cardboard made.
