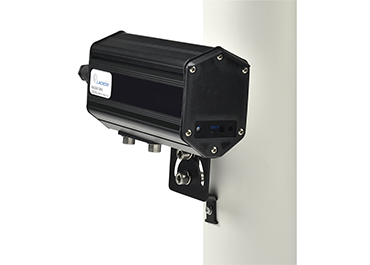

SRM radar sensor

Designed to detect vehicles, the high-tech SRM radar uses the Doppler-Fizeau effect principle at a frequency of 24.125 GHz, combined with a high-performance micro-controller.

With this very high frequency and extreme miniaturisation, the SRM radar delivers exceptional performance in a water resistant and compact housing.

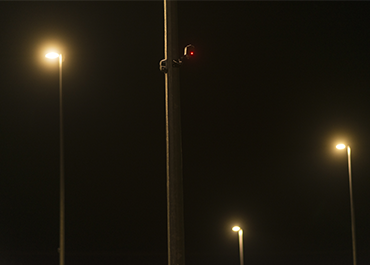

Its attachment system, which is specifically designed for street lighting, makes it easy to install and offers the radar multi-axial orientation.

The SRM radar is to be used with the VIA relay to interface with the SensyCity environment.

Download documentation

Advantages

Compact and discreet.
Robust and unaffected by weather conditions.
Can be adjusted without opening the device.
Non-intrusive technology.
Multiaxial orientation.
Easy to attach, designed for street lighting lampposts.

Technical specifications

Technology:

Ultra high frequency 24.125Ghz.

Mechanical characteristics:

Dimensions: 180 x 100 x 70mm.
Weight: 1.2kg.
Housing: IP65 with thermal protection / Painting & anodisation.

Electrical characteristics:

Switched power

Resistive load: 110VAC 0.3A – 24VDC 0.3A.
Inductive load: 110VAC 0.2A – 24VDC 0.3A.

Supply voltage: 220VAC +/- 10% 48/62 Hz – fuse protection.
Consumption < 1.5VA.

Installation:

Radar range: 150m for light vehicles.
Operating temperature: – 40°C to + 75°C.
Connection: 1 IP68 7-pin connector pre-wired 5m.

Settings:

Mode: One-way incoming flow/Two-way.
Configured using the switch on the front panel.
Display: High-performance red LED on front panel.

Standards:

Compliant with EC standards.
Responds to the requirements of directive R/TTE 1999/5/EG.

Operation

The radar can operate over a distance up to 150 metres and offers two sorts of information:

relay 1 takes all vehicles into consideration (from the adjustable lower threshold, 2 or 4 km/h, up to the maximum detectable speed, i.e. 160 km/h).
relay 2 simultaneously senses all vehicles with a speed exceeding the “over-speed” threshold (adjustable from 30 to 100 km/h).
