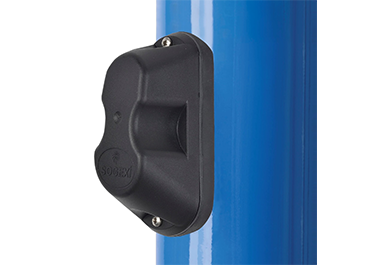

NOD Receiver
NOD Receiver
Device that receives radio detection information from a SIR Wireless detector, a VIA relay or the LoRa P2P communication module from Tegis
Part of the SensyCity and Tegis ecosystem, it maximizes energy savings while preserving security and the night environment.

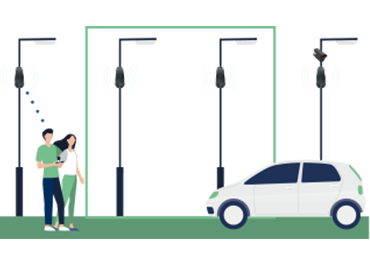

When operating with SensyCity, the NOD instantly restores the lighting intensity upon reception of the radio information by a priority setpoint sent to the LED driver (adjustable level and duration).
When operating with Tegis, the NOD becomes a radio-communicating management node for controlling and monitoring a light point.
Built-in intelligence to allow easy implementation and evolution of installations.
Programmable dimming scenarios in the NOD with the SensyCity application, up to 5 time steps per night.
Power supply integrated in the module for a simplified installation directly at the base of the lamppost.
Download documentation
Advantages
- Easy to install on all kinds of lampposts.
- Designed for the urban environment with its discreet design.
- Scalable, installations can be retrofitted and expanded.
- Combined with the Tegis ecosystem, the NOD receiver becomes a remote management node
Technical specifications
Mechanical specifications:
- Mechanical strength: IK08 casing
- IP54 protection rating.
- Material: polypropylene casing and protective skirt in thermoplastic elastomer.
- Colour: black
Electrical specifications:
- Main power supply: 220-240 VAC / 50-60 Hz
- Power consumption: < 1W
- Electrical class: Class 2
- Overvoltage resistance: 4kV
- Also available in 9-30 Vdc battery version, LED driver control only on the dry contact output.
Communication:
- Between light points: Secure LoRa radio
- LED driver control: DALI output.
Installation:
- Operating temperature: -20°C to +60°C
- Wiring: 5 metres of cable included (4 conductors).
- Mounting: 3 holes / 2 M4 self-tapping screws.
- Recommended height: 3 m to 4.5 m.
On-site configuration:
- On-site configuration interface: SensyCity application.
- On-site configuration tools: USB radio dongle.
- Many functions can be adjusted on-site.
Standards and certifications
- Product standards: NF EN 60529
- Product standards: NF EN 61347-2-11 street lighting)
- EC Certifications
Remote Setup :
- Setup interface: LX Connect software service – Tegis Lighting Plus and Detection
- Available functions: Dimming group and dimming level, light point monitoring
