Transparent junction boxes
With its ear to the ground, LACROIX City Street Lighting develops high-quality, extremely durable junction boxes and components. Thanks to a solid culture of innovation, LACROIX City Street Lighting has been designing for over 35 years, equipment keeping pace with the needs in the field.
Our connecting solutions allow you to protect people and installations and to save time in terms of installation and maintenance.
Transparent junction boxes
IP44-IK08 – CLASS II – PATENTED COMPONENTS

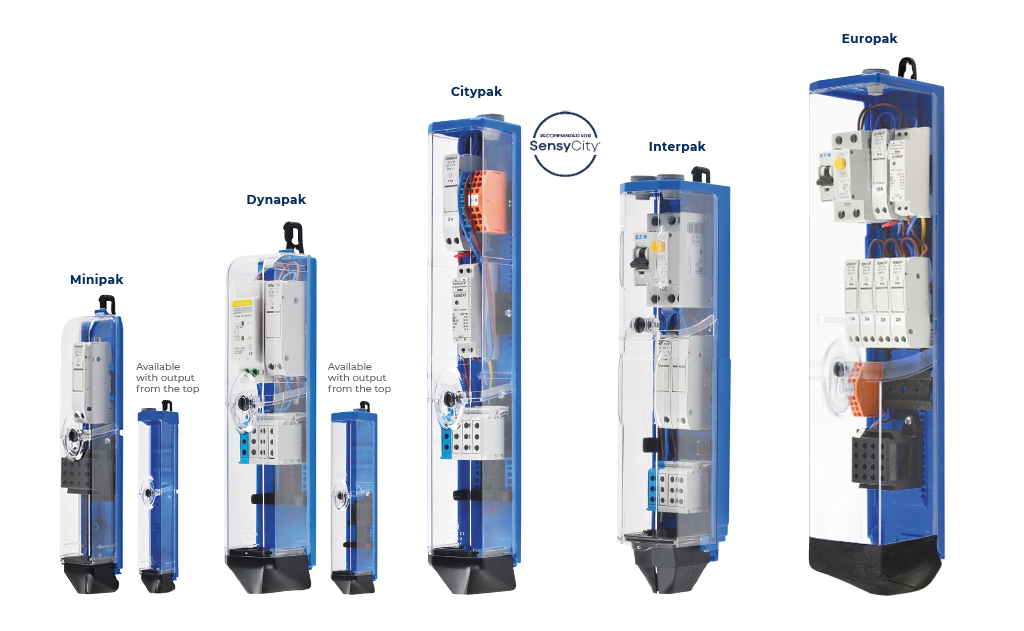

A full range made up of 5 models:
Minipak, Dynapak, Citypak, Interpak, and Europak
to cover different sizes of lampposts (from int. Ø 70 mm min. to int. Ø 110 mm min.).
Bottom cover easily fitted for secure maintenance of the connections.
Central locking by ¼ turn captive screw.
Open sides and stiffened back to facilitate connection.
Rear fixing lug, adjustable without tools.
Download documentation
Advantages
- A 100% transparent range.
- Specifically designed for optimal and complete visibility of the inside of the junction box.
- Immediately view and identify the components.
- Facilitated maintenance and wiring.
Technical characteristics
Casing
- Polycarbonate, self-extinguishing.
- IP44 in accordance with IEC 60529 (open junction box: IP2X).
- IK08 in accordance with EN 62262.
- Class 2.
- -40°C to +130°C.
Product standards
- EN 61439-2.
Installation standards
- NF C17-200 and associated guides.
Standard colour
- Transparent.
Mounting:
- Mounting lug with 1 or 2 hooks.
- Possible vertical rail mounting with M6 screws.
Optional:
- Terminal block: marking of the terminals to facilitate maintenance.
Delivery:
- Pre-wired with high-temperature silicone-coated wires and crimped lugs.
- Supplied with configuration labels and cable clamp.
