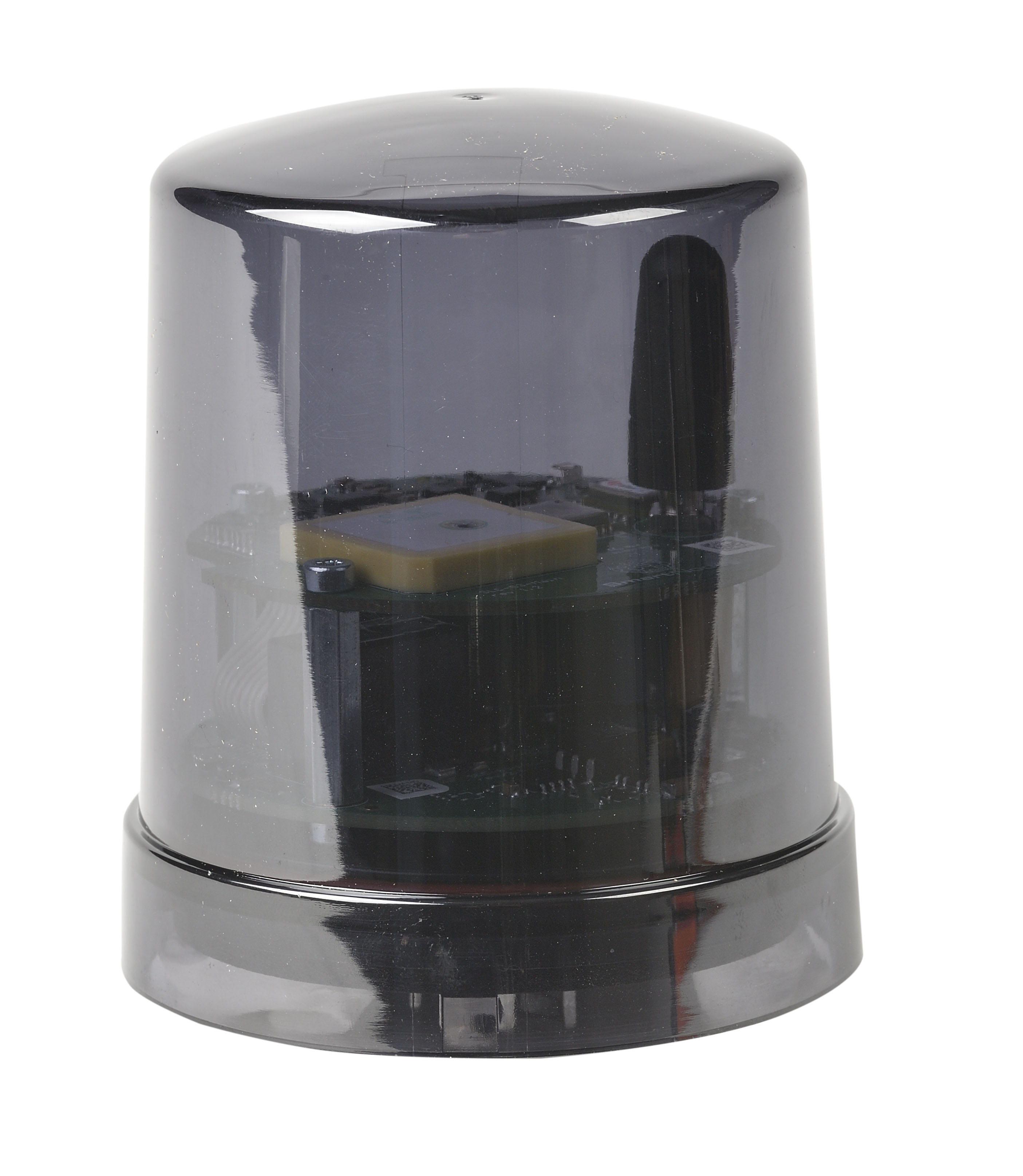

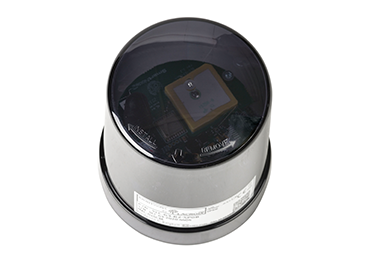

SmartNodes – Smart Lighting Controller NEMA

The SmartNodes SLC (“Smart Lighting Controller”) NEMA is a standardized connected node compatible with all NEMA luminaries. It controls, monitors and provide energy consumption information of luminaries.

Suitable for all equipment under DALI protocol, regardless of its power.

Every node transmit, receives and repeats over the RF communication network (2,4 GHz) using Wirepas technology. Every SLC node is unique and has its own specific address.





Download documentation

Benefits

LACROIX_SMARTNODES_200x200
  • Plug & Play
  • Automatically geolocated (thanks to the embedded GPS)
  • With power measurement (for the PM version) and D4i compatible
  • With a communication range of 175 meters
  • IP66

Technical specifications

Mechanical characteristics

  • Housing: PBT (base) and PC (dome)
  • IP (EN 60529) : IP66
  • IK (EN 62262) : IK09

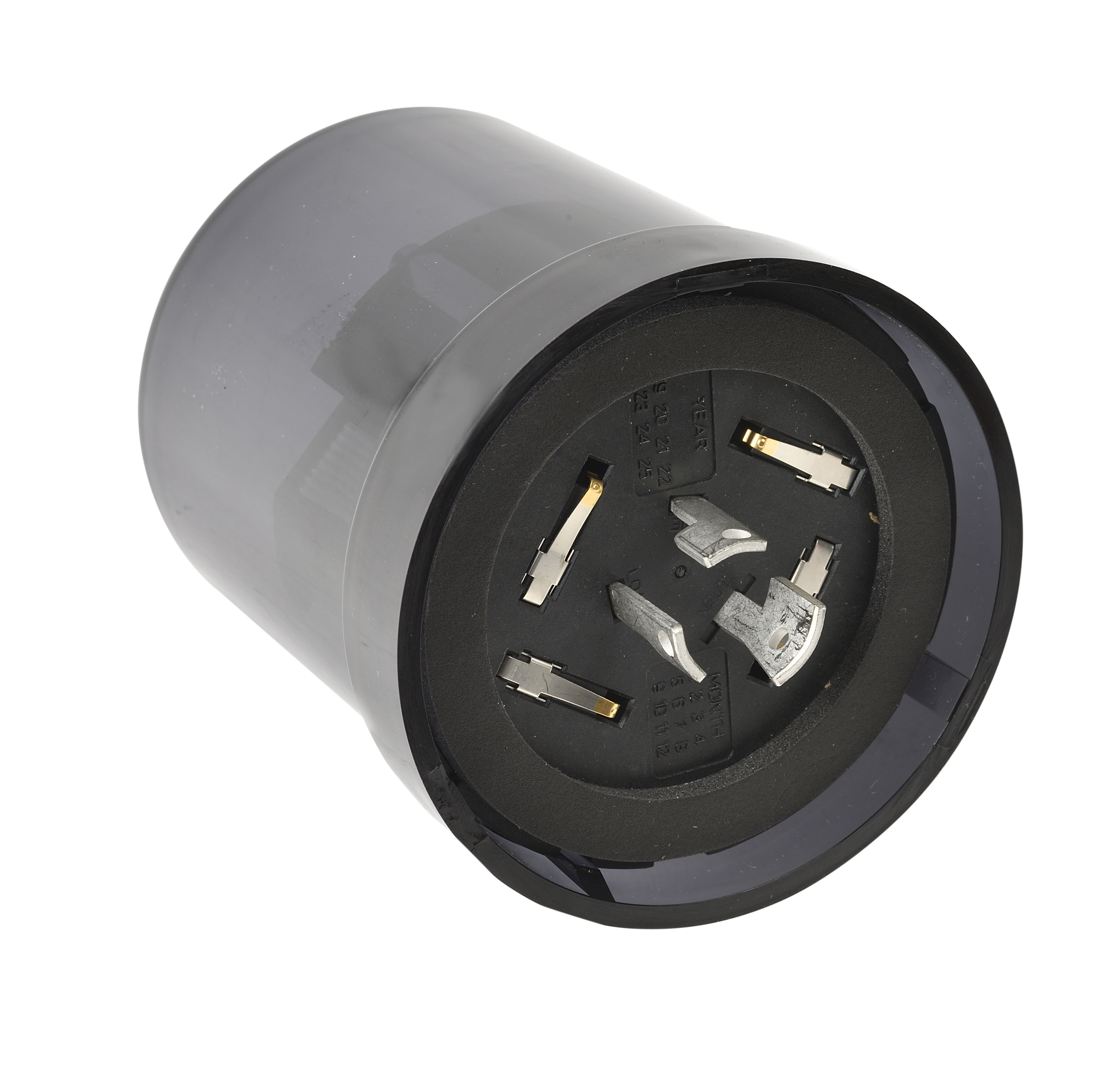

  • Connection type: NEMA 7-pin connector
  • Type of assembly: On NEMA pre-equipped light fixture
  • Weight : 600 g

Electrical characteristics

  • Power supply voltage: 110 V – 240 VAC / 50-60 z
  • Maximum relay load: 1,2 kVA @240V
  • Max relay current: 5 A
  • Power consumption: 0.8W
  • Electrical class: Class II, double galvanic isolation

Dimensions in mm

  • Height: 98
  • Diameter : 84

Environment

  • Ambient temperature: -30°C + 70°C
  • Humidity: 0% – 100% RH
  • Storage temperature: -30°C + 70°C



Radio link and communication

  • Mesh radio link network: Wirepas
  • Frequency: 2,4 GHz
  • Rated power: 8 dBm
  • RX sensitivity: -94 dBm
  • Modulation : GFSK
  • Inter-node range: 175 m maximum, with an empty field
  • Flow: 1 Mbit/s
  • Network security: 128-bit AES encryption + OMAC1 authentication
  • Modem : compatible with 2G, 3G, 4G

Accreditation and standards

  • Accreditations: CE
  • Product standards:  EN55015 ; EN55032 ; EN61000-3-2
    EN61000-4-2/3/4/5/6/11 ; EN3014889-1V2.1.1 ; EN301489-17 V3.1.1
    EN300328 V2.11 ; EN300330 V2.11
    IEC 62368-1
    IEC 62386
