SLC Zhaga

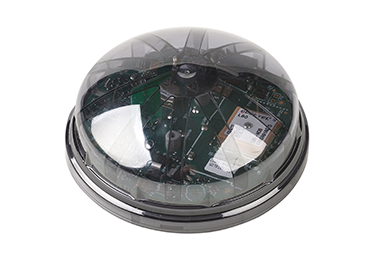

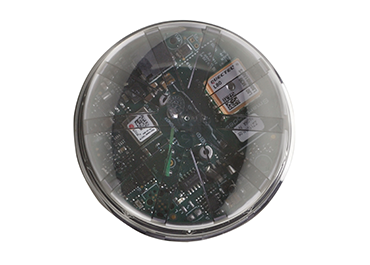

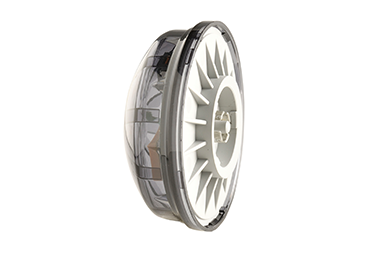

SmartNodes – Smart Lighting Controller Zhaga
The SmartNodes SLC (“Smart Lighting Controller”) Zhaga is a standardized connected node compatible with all Zhaga luminaries. It monitors and provide energy consumption information of luminaries.
Suitable for all equipment under DALI protocol, regardless of its power.
Every node transmit, receives and repeats over the RF communication network (2,4 GHz) using Wirepas technology. Every SLC node is unique and has its own specific address.
Download documentation
Benefits
- Plug & Play
- Easy to install and to configure
- Automatically geolocated (thanks to the embedded GPS)
- ZD4i compatible
- With a communication range of 175 meters
- IP66
Technical specifications
Mechanical characteristics
- Housing: PBT (base) and PC (dome)
- IP (EN 60529) : IP66
- IK (EN 62262) : IK09
- Connection type: Zhaga
- Type of assembly: On Zhaga pre-equipped light fixture
- Weight : 75 g
Electrical characteristics
- Power supply voltage: 12 V – 24 VDC
- Rated current: 25 – 80mA
- Max relay current: 5 A
- Power consumption: 0.6 W
Dimensions in mm
- Height: 38.5
- Diameter : 80
Environment
- Ambient temperature: -30°C + 70°C
- Humidity: 0% – 100% RH
- Storage temperature: -40°C + 70°C
Radio link and communication
- Mesh radio link network: Wirepas
- Frequency: 2,4 GHz
- Rated power: 8 dBm
- RX sensitivity: -94 dBm
- Modulation : GFSK
- Inter-node range: 175 m maximum, with an empty field
- Flow: 1 Mbit/s
- Network security: 128-bit AES encryption + OMAC1 authentication
- Modem : compatible with 2G, 3G, 4G
Accreditation and standards
- Accreditations: CE
- Product standards: EN55015 ; EN55032 ; EN61000-3-2
EN61000-4-2/3/4/5/6/11 ; EN3014889-1V2.1.1 ; EN301489-17 V3.1.1
EN300328 V2.11 ; EN300330 V2.11
IEC 62368-1
IEC 62386
