Tegis Lighting Plus 24/7 PLC Module

Based on Power Line Communication (PLC) technology, this module makes it possible to communicate with the Tegis TNX communicating nodes, dedicated to street lighting or with Tegis TNX24 communicating nodes, dedicated to transforming the street lighting network into a permanent grid powered 24/7.

The TNX and TNX24 nodes are placed at the base of lampposts.

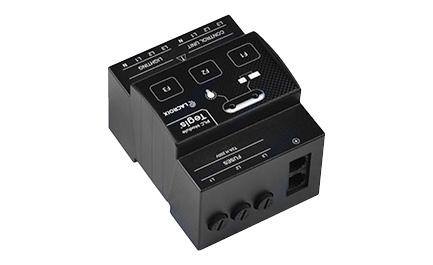

This module is housed in a cabinet and connects to the control box for Tegis Lighting Plus by a simple RJ12 cable.

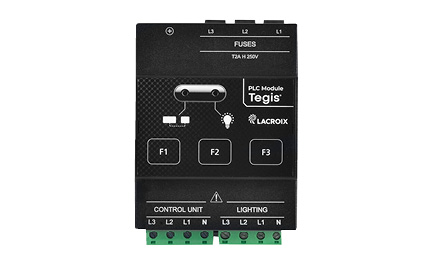

Its small size, equivalent to four modules, means it is easy to install on a DIN rail in the cabinet.


Tegis Lighting Plus CENTRAL CONTROL
  • It is adjustable, which means that the connected management of the cabinet can be developed to include light points and third-party services using PLC technology.
  • Supports communication with up to 150 unique addresses for Tegis TNX communicating nodes, TNX24 communicating nodes and their associated TRX relays.
  • Optimised maintenance with interchangeable fuses for protection against overvoltages.

Technical specifications

Technical Specifications:

  • Casing: IP2X
  • Materiel: Polycarbonate
  • Dimensions (HxLxP) – in mm: 112 x 71 x 62,
    equivalent to 4 modules
  • Removable connectors

Electrical specifications:

  • Operation voltage: 160V-265VVAC / 50-60 Hz
  • Electric class: Class 2
  • 3 Removable fuses T2A H 250V

Installation :

  • In cabinet
  • Standard fixation: DIN 35 rail
  • Operation temperatures: from -25°C to +50°C

Communication :

  • RJ12 towards the control unit
  • PLC owner protocol toward TNX communicating nodes

Norms and Certifications:

  • EC certifications ((2014/35/EU ; 2014/30/EU ; 2011/65/EU)
