LACROIX

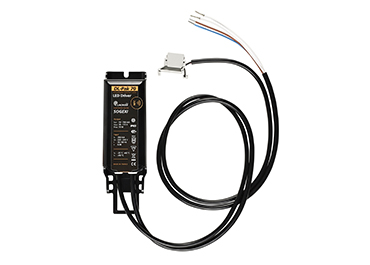

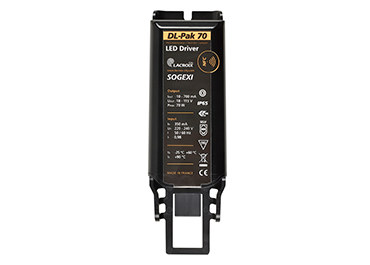

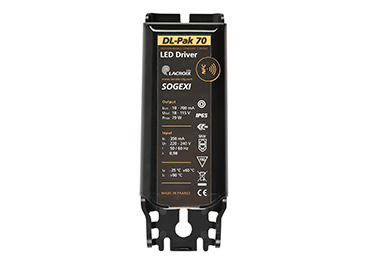

DL-Pak 70

Designed and manufactured in France, the new DL-Pak 70 driver optimizes maintenance and offers very high performance for your LED street lighting.

  • Constant current supply
  • A 10-700 mA configurable current
  • A wide power range of 0.25-70W
  • Isolated Driver (SELV)
  • IP65 for durable operation in an outdoor environment



Téléchargez les documentations produit

Advantages

DLPAK-vignette-2
  • Universal solution for powering your LED lighting thanks to its wide power range.

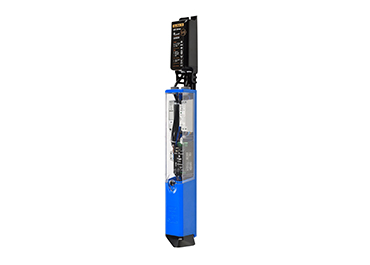

  • Installation at the lamppost base or in light fixtures (also possible)
  • High performance both dimmed and on full power over a wide operating range.
  • Simply configuration thank to the MyDL-Pak application (planned for 2021), for power off via NFC and with Power on using DALI.
  • Designed and manufactured in France.

Technical characteristics

–Smart Functions:

Light source : LED

Type of LED control : Constant current

Dimming functions : ITD, DALI, Pilot, DIM/V

Additional functions : CLO, POL

Configuration:

  • Power off, contactless NFC, with MyDL-Pak, dedicated application, in workshop or on site
  • Powered, in DALI



–Electrical characteristics:

Power supply: 220-240 V / 50-60Hz

Electrical Class :Class-2 compatible, Isolated (SELV)

Output voltage : 18…115 V

Output Power: 0,25…70 W

Dimming range : 1,4 %…100 %

Output current : 10… 700 mA

Performance @ Pmax / 50% Pmax / 25% Pmax : ≥ 92,5 % / ≥ 91,5 % / ≥ 88 %

Power factor  @Pmax / 22 % Pmax / 13 % Pmax : > 0,99 / ≥ 0,95 / ≥ 0,9

Inrush current / Pulse time : 20 A / 400 μs

Number of drivers per output (protection by DPN 16 A courve b) : Up to 17 DL-Pak 70 drivers

Comsumption in standby mode – dimming at 0%  : < 0,2 W

Immunity to overvoltages (differential mode) : 7 kV

Immunity to overvolatges (common mode) : 7 kV



– Mechanical Characteristics:

Casing : self-extinguishing PC

IK (EN 62262) : IK08

IP (EN 60529) : IP65

Max. distance from the light source : 15 m

Weight : 580 g

– Estimated lifetime

100 000 hours at Tc < 68°C (90 %)

– Environment

Ambient temperature : -25°C +60°C

Humidity  : 10-95 %

– Certification :

  • CE
  • ENEC
  • SELV

– Product standards :

  • EN61347-1/ EN61347-2-13
  • EN62384
  • EN61547
  • EN55015/EN61000-3-2 / EN61000-3-3



Environnemental protection

Energy saving certificatest-Sogexi

The new generation of the DL-Pak 70 has been developed to limit its energy consumption and environmental impact throughout its life cycle.

  • A reduction of more than 25% in the product’s mass
  • Standby mode consumption reduced by seven
  • A 41% reduction in the carbon footprint
  • Improved recyclability rate to reach 89%

These figures are given as a comparison with the previous driver generation
