Lotipak Trafik
Lotipak Trafik
IP44-IK08 – PATENTED – CLASSE II

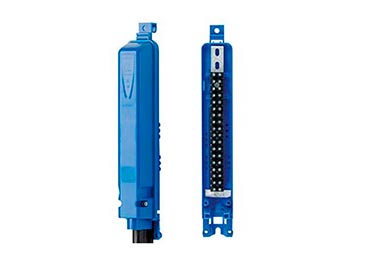

Junction boxes for traffic or tramway signalling and security cameras or CCTV.
Open and rigid sides to facilitate wiring.

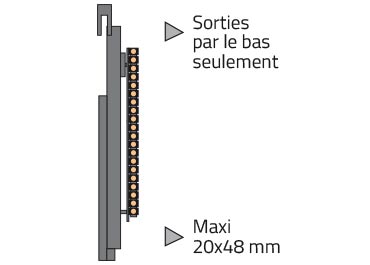

Main outputs via the bottom in standard version, or optional via the top with TET for Dynapak, Citypak,Polypak and Interpak.

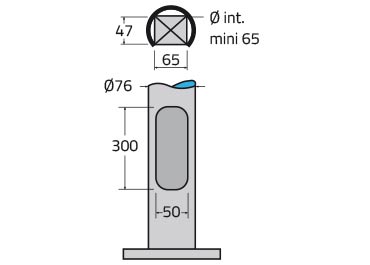

Fastening by mounting lug adjustable without tools (Dynapak, Citypak, Polypak, Interpak) or M6 screws.
Download documentation
Advantages
- Lotipak, Dynapak, Polypak: cover secured by captive screws.
- Citypak, Interpak: large terminal capacity.
- Two separate covers secured by captive 1/4-turn screws.
Technical specifications
Casing
• Self-extinguishing polycarbonate.
• IP 44 (box open: IP2X).
• IP 44 in accordance with EN 60529.
• Class 2.
• Tool-free mounting by adjustable lug or M6 screw.
• -40°C to +130°C.
Accepted terminals
• Connection terminals with screwed contacts: D6 (6mm²), D10 (10mm²), D16 (16mm²).
• Spring-loaded terminals, automatic clamping: R2, R4.
• Other references: please contact us.
Max capacity
Lotipak Trafik:
• Up to 18 D6 connection terminals.
Dynapak Trafik:
• Up to 22 D6 connection terminals.
• Up to 40 R2 terminals.
Citypak Trafik:
• Up to 30 D6 connection terminals.
• Up to 58 R2 terminals.
Polypak Trafik:
• Up to 18 D6 connection terminals.
• Up to 38 R2 terminals.
Interpak Trafik:
• Up to 30 D6 connection terminals.
• Up to 55 R2 terminals.
Standard colour: blue
