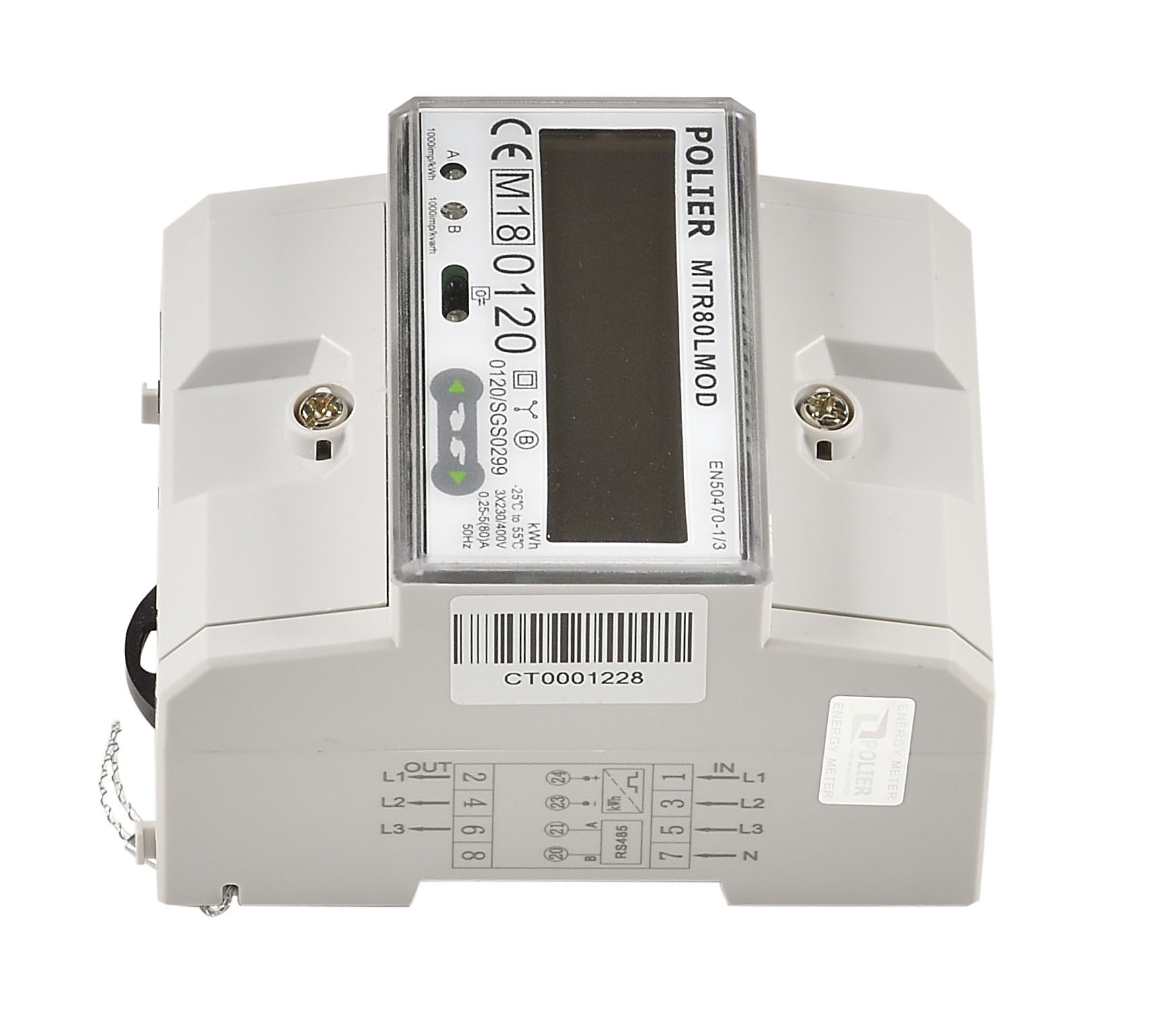

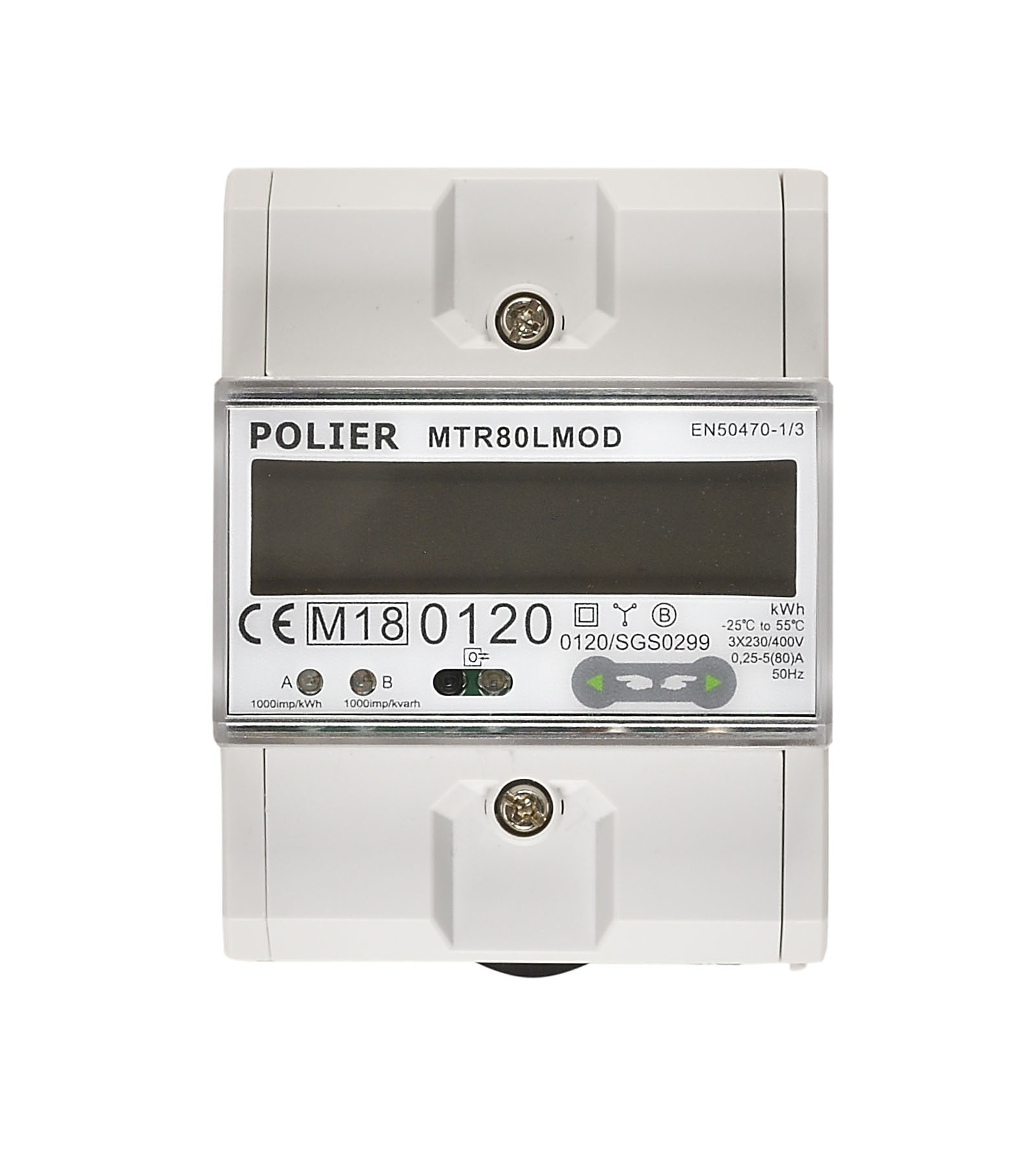

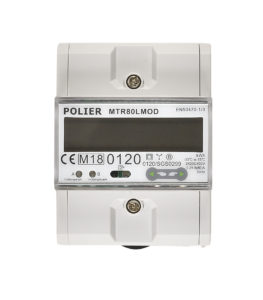

Three-phase RS485 energy meter for Tegis control unit

The three-phase electric meter allows the reading of the electricity consumption of the public lighting cabinet.

Compact with 5 modules wide, and easy to install on a DIN rail in a cabinet, it connects with the Tegis control unit via its RS485 port

The electric meter carries out a direct measurement

MID certified, it allows billing of energy consumption

Benefits

Tegis Lighting SERVICE CLIENTS
  • Daily reporting of index and electricity consumption on the LX Connect platform – Tegis web
  • High and low consumption anomaly alerts
  • Calculation of the power factor
  • LCD screen display, to ease the reading of the various information at the cabinet
  • MID certified

Technical characteristics

Technical characteristics :

  • Voltage: 3 x 230 / 400 V
  • Maximal intensity : 80 A
  • Starting intensity : 20 mA
  • Accuracy: B Class
  • Frequency : 50-60 Hz
  • Operating temperature : -25/55°C
  • Display : LCD
  • Max phase / neutral connection section : 25 mm²
  • Communication link type : RS485 – Modbus

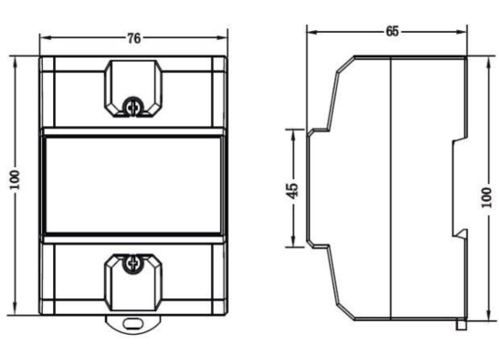

  • Size (H x L x l) in mm : 65 x 100 x 76 eq to 5 modules
  • Conformity: CE ; MID ; IEC62052-11 et IEC62053-21
