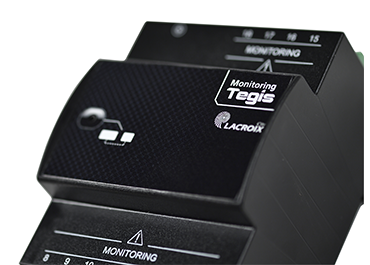

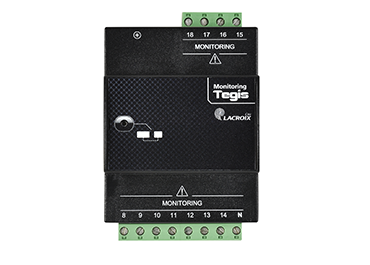

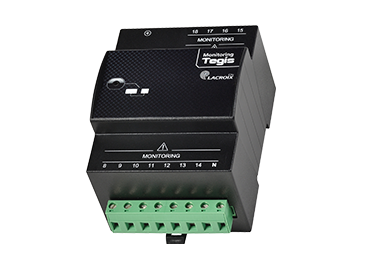

Monitoring module Tegis Lighting

This module adds 11 monitoring inputs ON/OFF, to monitor more elements in the street lighting cabinet.

Compact, it is equivalent to 4 modules and it can be easily installed on DIN Rail of the street lighting cabinet.

Easy connection with the control unit.

Advantages

Tegis Lighting Plus CENTRAL CONTROL
  • Modular, it allows to increase the number of monitoring inputs to adapt to the need for evolution of the cabinet.
  • Up to 2 monitoring modules by control unit ie 22 monitoring inputs available in total.

Technical specifications

Technical Specifications:

  • Casing: IP2X
  • Materiel: Polycarbonate

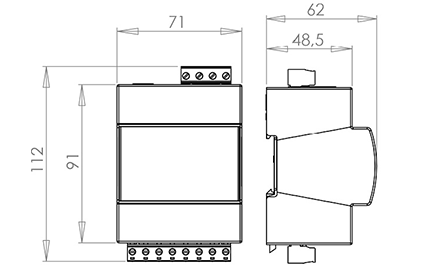

  • Dimensions (HxLxP) – in mm: 112 x 71 x 62, equivalent to 4 modules
  • Removable connectors
  • Number of monitoring inputs: 11 input ON/OFF

Electrical specifications:

  • Operation voltage: 160V-265VVAC / 50-60 Hz
  • Electric class: Class II

Installation:

  • In cabinet
  • Standard fixation: DIN 35 rail
  • Operation temperatures: from -25°C to +50°C

Communication:

  • RJ12 towards the control unit

Norms and Certifications:

  • EC certifications (2014/35/EU ; 2014/30/EU ; 2011/65/EU)
