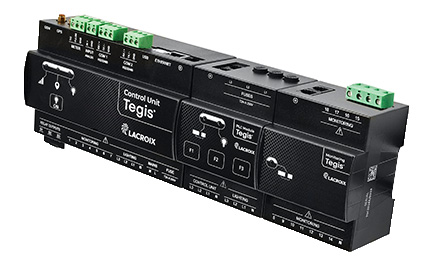

Tegis Lighting Plus Control Unit

Extension to the light point of Tegis Lighting, connected management of cabinets offer, Tegis Lighting Plus control unit allows monitoring and dimming of each light point.

It proposes the connected control with 3 independent astronomical clocks.

The control unit is equipped with 7 monitoring inputs, for a full information, in real time, of the public lighting cabinet status.

Linked to a digital counter, energy consumptions of the street light cabinet are reported on the LX Connect Public Lighting web platform, through the control unit.

Advantages

Tegis Lighting Plus CENTRAL CONTROL
  • Simple to implement, for a connected management up to the light point.
  • Easy to deploy, as a central control or as main local astronomical clock control.

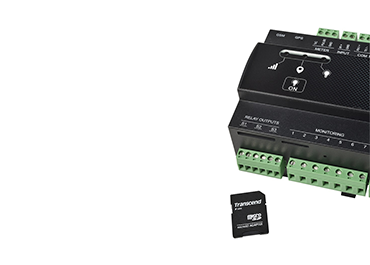

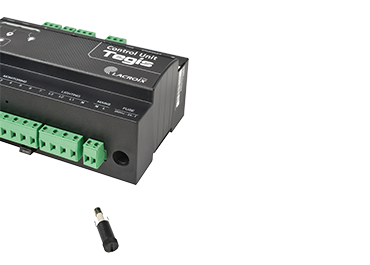

  • Removable SD card and fuses, to ease the maintenance.
  • Upgradable to new use cases, the control unit is ready to support new functionnalities.



Technical specifications

Technical Specifications:

  • Casing: IP2X
  • Materiel: Polycarbonate
  • Dimensions (HxLxP) – in mm: 112 x 160 x 62,
    equivalent to 9 modules
  • Removable connectors
  • SD card reader, to store the control unit settings
  • 3 relay outputs (astronomical clocks)
  • Number of monitoring inputs: 17 inputs ON/OFF

Electrical specifications:

  • Operation voltage: 160V-265VVAC / 50-60 Hz
  • Electric class: Class II
  • Removable fuse T2A-H-250V

Installation:

  • In cabinet
  • Standard fixation: DIN 35 rail
  • Operation temperatures: from -25°C to +50°C

Communication:

  • Integrated modem: GSM/GPRS
  • Ethernet connection
  • USB connection for onsite settings

Norms and Certifications:

  • Product norms:
    • EN 60950-1
    • EN 61000-2 / 61000-3
    • EN 55032
    • EN 55024
    • EN 301-3 / 301-7 / 301-24 / 301-489 / 301-511 / 301-908
    • EN 300-440
  • EC certifications (2014/35/UE ; 2014/30/UE ; 2011/65/UE)

Environmental protection

Energy saving certificatest-Sogexi

Eligible for Energy saving Certificates:

RES-EC-107
> 17,500 kWh cumac x N (number of astronomical clocks)
Astronomical clock for street lighting.

Environmentally friendly design product:
Control unit is 4 times more compact and twice as light as the previous version,
reducing the environmental impact of the production at the end of life.
Lower consumption: 2.5 W.
Compact packaging, made only from cardboard, to facilitate recycling.
