PCL Module

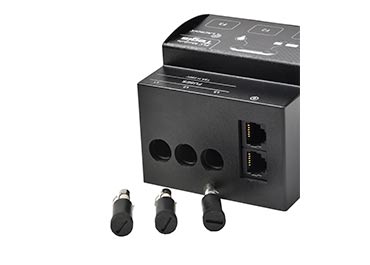

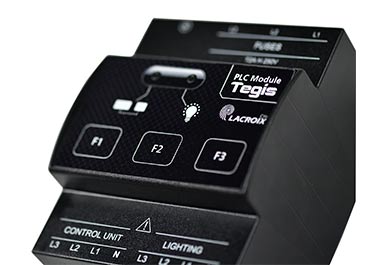

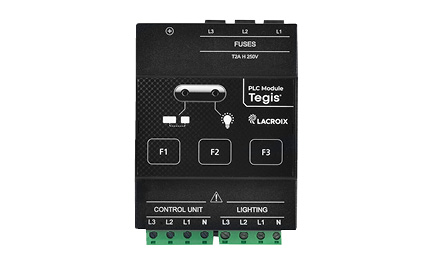

Based on PLC (Power Line Communication) technology, this module allows to communicate to Tegis TNX, the communicating nodes installed in the junction boxes, in lamppost bases.

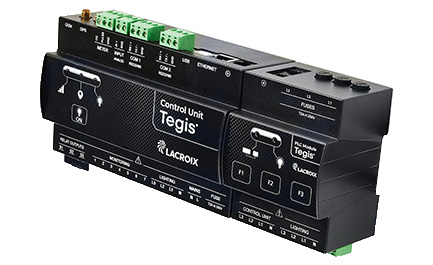

Located in the street light cabinet, the PLC module is connected to the Tegis Lighting Plus control unit with a simple RJ12 cable.

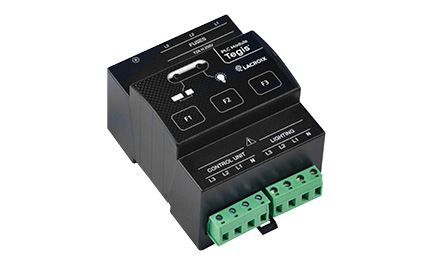

Compact, it is equivalent to 4 modules and it can be easily installed on DIN Rail of the street lighting cabinet.

Advantages

Tegis Lighting Plus PLC MODULE
  • Modular, it allows to update the connected management of the street light cabinet to the light point, thanks to PLC technology.
  • Up to 150 TNX communications nodes supported.
  • Optimized maintenance thanks to intechangeable fuses for the protection against surges.

Technical specifications

Technical Specifications:

  • Casing: IP2X
  • Materiel: Polycarbonate
  • Dimensions (HxLxP) – in mm: 112 x 71 x 62,
    equivalent to 4 modules
  • Removable connectors

Electrical specifications:

  • Operation voltage: 160V-265VVAC / 50-60 Hz
  • Electric class: Class 2
  • 3 Removable fuses T2A H 250V

Installation:

  • In cabinet
  • Standard fixation: DIN 35 rail
  • Operation temperatures: from -25°C to +50°C

Communication:

  • RJ12 towards the control unit
  • PLC owner protocol toward TNX communicating nodes

Norms and Certifications:

  • EC certifications ((2014/35/EU ; 2014/30/EU ; 2011/65/EU)
