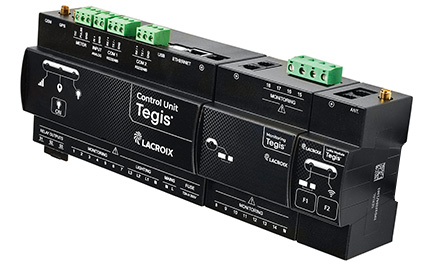

Tegis Lighting control unit
Tegis Lighting control unit
Installed in the public lighting cabinet, Tegis Lighting control unit offers an entire connected management.
The control allows the lighting and extinguishing of public lighting and illuminations through an astronomical calculation on 3 relay outputs. This feature will be used as the main local control or the backup local control.
It has 7 monitoring inputs, to know in real time the public lighting cabinet status (main power, lighting contactor, door opening,…)
Linked to a digital counter, the control unit collects energy consumption of the cabinet.
I
Download documentation
Advantages
- Its connected astronomical clock is the first source of energy saving.
- Easy to maintain with its remote access through a web platform.
- Multipurpose and ready for new use cases, various inputs and outputs types are available.
- Future-proof, the installation will simply migrate to entirely connected management of cabinet and light points.
Technical specifications
Mechanical characteristics:
- Casing: IP2X
- Materiel: Polycarbonate
- Dimensions (HxLxP) – in mm: 112 x 160 x 62,
equivalent to 9 modules - Removable connectors
- SD card reader, to store the control unit settings
- 3 relay outputs (astronomical clocks)
- Number of monitoring inputs: 7 inputs TOR
Electrical specifications:
- Operation voltage: 160V-265VVAC / 50-60 Hz
- Electric class: Class II
- Removable fuse T2A-H-250V
Installation :
- In cabinet
- Standard fixation: DIN 35 rail
- Operation temperatures: from -25°C to +50°C
Communication :
- Integrated modem: GSM/GPRS
- Ethernet connection
- USB connection for onsite settings
Norms and Certifications:
- Product norms:
- EN 60950-1
- EN 61000-2 / 61000-3
- EN 55032
- EN 55024
- EN 301-3 / 301-7 / 301-24 / 301-489 / 301-511 / 301-908
- EN 300-440
- EC certifications (2014/35/UE ; 2014/30/UE ; 2011/65/UE)
Environmental protection
Eligible for Energy saving Certificates:
RES-EC-107
> 17,500 kWh cumac x N (number of astronomical clocks)
Astronomical clock for street lighting.
Environmentally friendly design product:
Control unit is 4 times more compact and twice as light as the previous version,
reducing the environmental impact of the production at the end of life.
Lower consumption: 2.5 W.
Compact packaging, made only from cardboard, to facilitate recycling.
