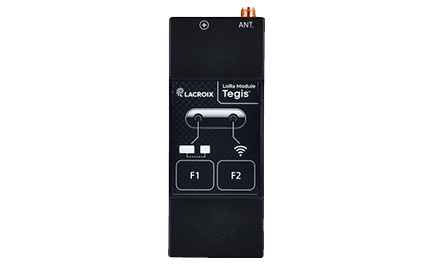

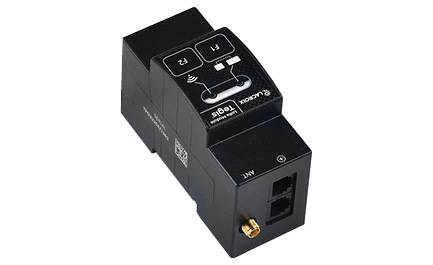

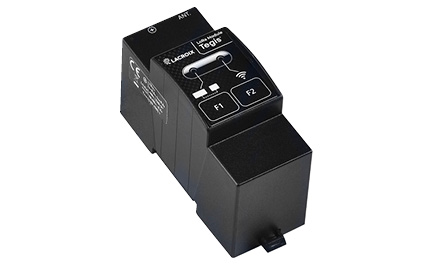

Communication module LoRaWAN
Communication module LoRaWAN
This module connects the Tegis ecosystem to the infrastructure of a self-operated or private LoRaWAN network and forwards surveillance information from the cabinet to the communication network.
Its compact size is equivalent to that of a dual module and can be easily installed on the DIN rail of the street lighting cabinet.
It is easy to connect to the control unit.
It is supplied with an anti-vandalism antenna.
Advantages
- This modular extension module provides a new LoRaWAN communication channel for the Tegis control unit, in addition to the existing GSM communication network.
Technical specifications
Technical Specifications:
- Casing : IP20
- Materiel : Polycarbonate
- Dimensions (HxLxP) – in mm: 92 x 36.5 x 62, equivalent to 2 modules
Electrical specifications:
- Operation Nominal input voltage range : 12 VDC
- Electric class: complies with Class I and Class II
- Power consumption (standby/max): 0.4 W / 0.9 W
Installation:
- In cabinet
- Standard fixation: DIN 35 rail
- Operation temperatures: from -25°C to +50°C
- Humidity: 10-95%.
Communication:
- RJ12 towards the control unit
- LoRaWAN – 868 MHz
Norms and Certifications:
- EC certifications: (2014/35/EU; 2014/30/EU; 2014/53/EU)
